New Product: ALTA/NSPS Standards

New Product: ALTA/NSPS Standards

Aerotas is excited to announce a new product focused exclusively on the requirements for ALTA/NSPS Land Title Surveys.

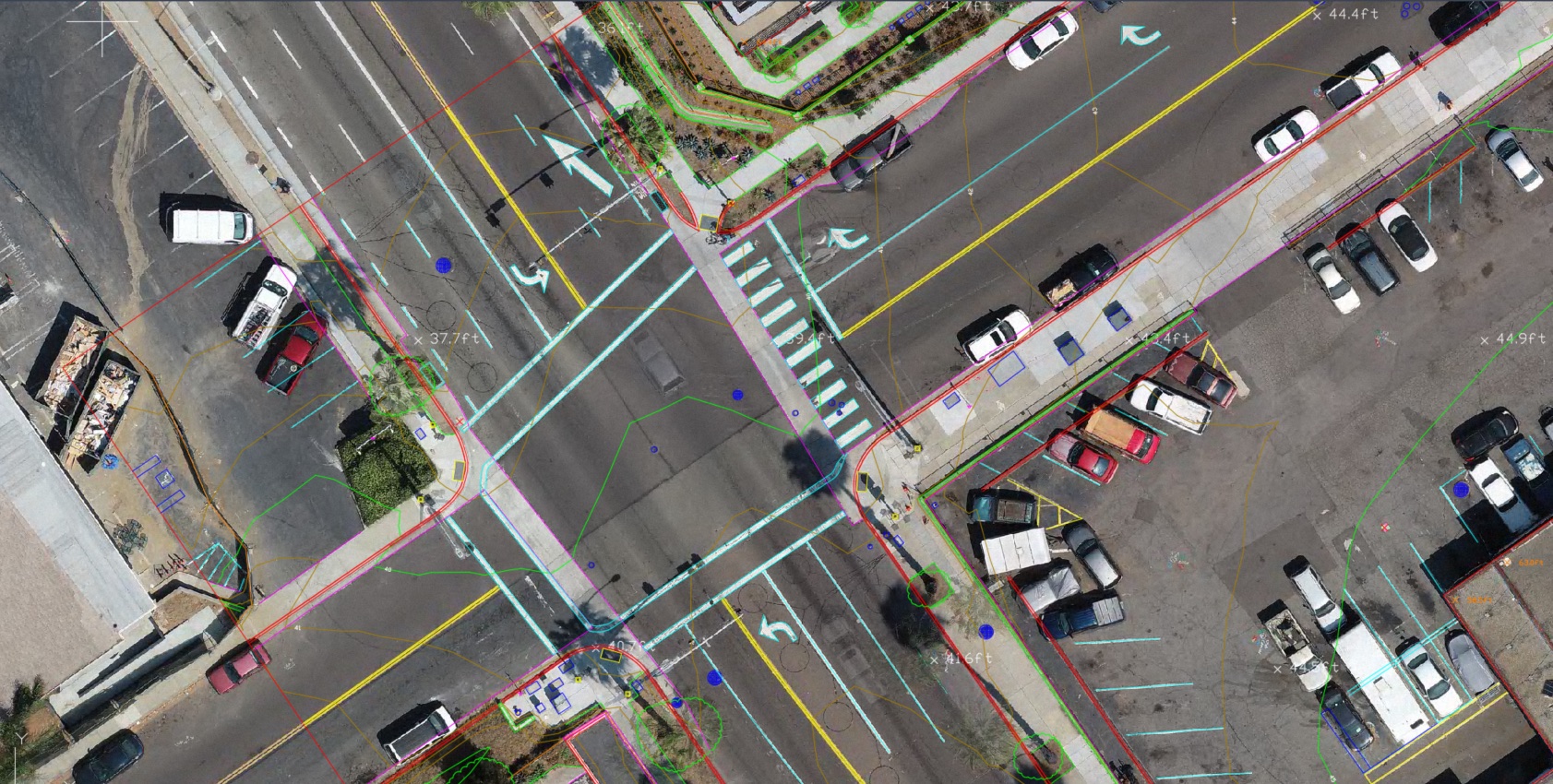

For years, Aerotas has been delivering linework that surveyors use as a part of ALTA surveys. However, we recognize that it can take substantial effort to go from our standard linework deliverable to a completed ALTA survey. This product aims to get you as close as possible to an ALTA/NSPS Land Title Survey with the data a drone can collect.

ALTA standards dictate a very specific set of requirements. Our new product option aligns perfectly with the requirements for ALTA/NSPS land title surveys and allows surveyors to add “Table A” options when necessary.

While the drone cannot check all the boxes for an ALTA survey, we can get you closer with our improved CAD layers, along with additional modifications and improvements to our drafting and marking methodology. Aerotas implemented all of these changes to get you closer to a finished ALTA survey with less work. These additions should tip the scales of any cost comparison and allow you to put the drone in the air on more ALTA surveys.

The Aerotas ALTA/NSPS Standards product is not a completed ALTA survey, and it does not, by itself, meet the minimum standard detail requirements for an ALTA/NSPS Land Title Survey. A complete ALTA/NSPS Land Title Survey requires data gathered by a licensed land surveyor physically on the property. However, this product provides all of the information that can be collected by a drone in compliance with the ALTA/NSPS Standards. Please reference the ALTA/NSPS standards for more details.

What’s New

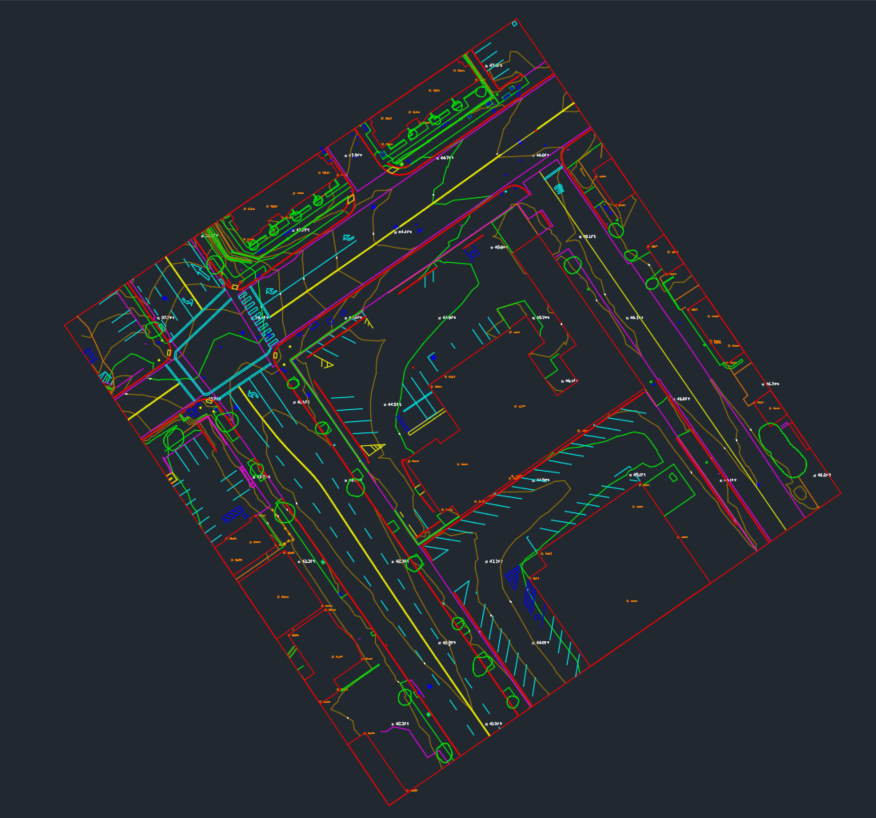

Below are just a few of the changes you may see between our standard Full Linework product and our new ALTA/NSPS Standards deliverables:

  • 2D features marked with 2D polylines

  • TIN surface and contours remain as a 3D surface

  • Default layer visibility changed to improve overall readability

  • An additional layer added for spot topo points to improve readability

  • Concrete walls marked with double lines

  • Detail added for the size/shape of utilities, instead of just a point

  • Additional symbols added to differentiate signs and utilities

  • Additional features marked by default (such as guy wires, certain utilities, etc.)

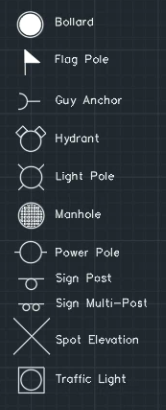

New CAD Symbols



New CAD Layers

Layer Name

X-Bollard

X-Culvert

X-Gate

X-Guy-Anchor

X-Paint-Letter-Blue

X-Paint-Letter-Red

X-Paint-Letter-White

X-Paint-Letter-Yellow

X-Pilaster-Brick

X-Pilaster-Concrete

X-Pole-Flag

X-Pole-Traffic-Light

X-Railing

X-Shed

X-Sign-Multi-Post

X-Sign-Post

X-Tank

X-Spot-Elev

X-Tree-Line

TYPE

Point

Polygon

Polyline

Point

Polyline

Polyline

Polyline

Polyline

Polygon

Polygon

Point

Point

Polyline

Polygon

Point

Point

Polygon

Point

Polygon

CATEGORY

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Planimetric

Topographic

Other

Color

YELLOW

CYAN

ORANGE

GREEN

BLUE

RED

CYAN

YELLOW

MAGENTA

GREEN

YELLOW

YELLOW

ORANGE

RED

MAGENTA

MAGENTA

RED

WHITE

GREEN


Steps to get ALTA/NSPS Standards

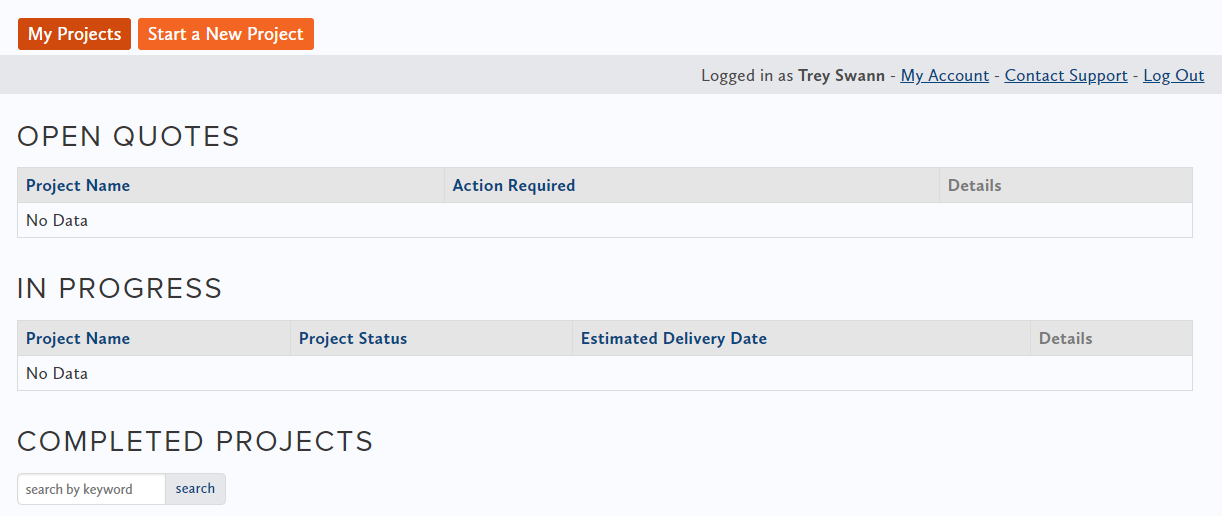

1) Sign Up for Free

By creating a free account, you can:

  • Request free quotes

  • Download sample projects

  • Track every stage of a project in real-time

  • Access a searchable list of all completed projects

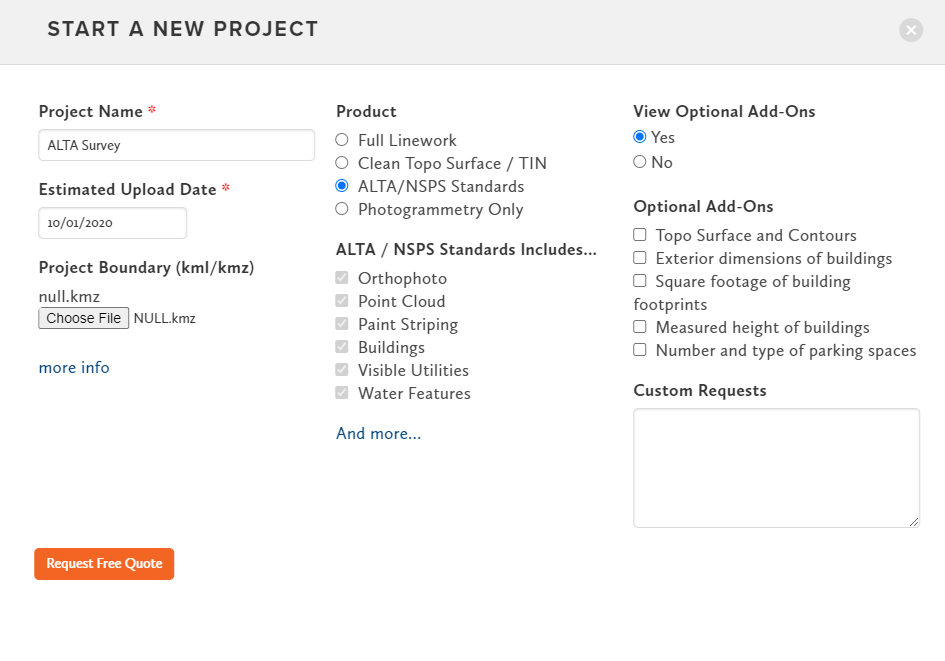

2) Start a New Project

Sign in and click Start a New Project at the top.

3) Select the ALTA/NSPS Standards product

Provide a few details about the project and select ALTA/NSPS Standards.

You will receive a free quote. Once you accept the option that makes the most sense for your project, you will be prompted to upload your data.

There is no contract or long-term commitment, and no new software to purchase because our deliverables work with your existing CAD software.

Thousands of high-performing surveyors use Aerotas to process their drone data because it increases the flexibility of their business, saves them time, and gets them better deliverables.


Questions? Contact us anytime at (949) 335-4323, or info@aerotas.com
